7. Part No: 2440D-025V32
Description: Parker High Pressure 2440D Hoses are developed for High and Ultra High-Pressure applications, combining excellent handling and long service life with superior safety standards. For working pressure up to 220 MPa.
Product: Hose
UOM: Nos

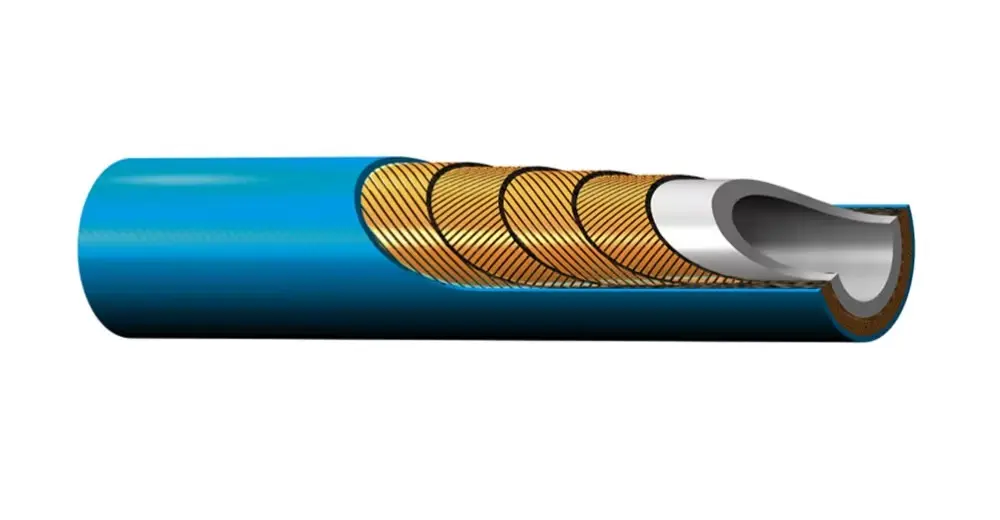

Product Image:
Technical Specifications:
| Lid: | Standard |
| Hose Inner Diameter (mm): | 4.0 |
| Brand: | Parker |
| Fluid: | Petroleum Hydraulic Fluids, Water |
| Meets Technical Specifications: | DIN 1829-2 |
| Compatible Fitting: | LX Series |
| Inner Diameter: | 5/32 inch, 4 mm |
| Application: | Industrial Cleaning, Marine Cleaning, Water Jet Cutting |
| Hose Reinforcement Layer Material: | 4 Spirals of Maximum Tensile Steel Wire |
| Outer Diameter: | 0.409 inch, 10.5 mm |
| Division: | Polymer Hose Division Europe |
| Industry: | General Industrial, Marine |
| Technology: | Fluid & Gas Handling |
| Product Type: | Hydraulic Hose, Transfer Hose, Water Blast Hose, Water Hose |
| Maximum Working Pressure: | 31900 psi, 220 MPa, 2200 bar |
| Minimum Bending Radius: | 100 mm, 3.937 inch |
| Design Factor: | 2.5:1 |
| Maximum Operating Temperature: | 70°C, 158°F |
| Minimum Operating Temperature: | 14°F, -10°C |
| Design Materials: | Thermoplastic |
| Cover Material: | Polyamide (PA) |
| Hose Inner Wall Material: | Polyoxymethylene (POM) |
| Weight: | 0.21 kg/m, 0.14 lb/ft |
| Maximum Working Pressure (Mpa): | 220 |
Parker Thermoplastic Hoses for Ultra High-Pressure Catalog_4462_UK--(English).pdf
