5. Part No: 2240D-03V32
Description: Parker High Pressure 2240D Hoses are developed for High and Ultra High-Pressure applications, combining excellent handling and long service life with superior safety standards. For working pressure up to 120 MPa.
Product: Hose
UOM: MTR

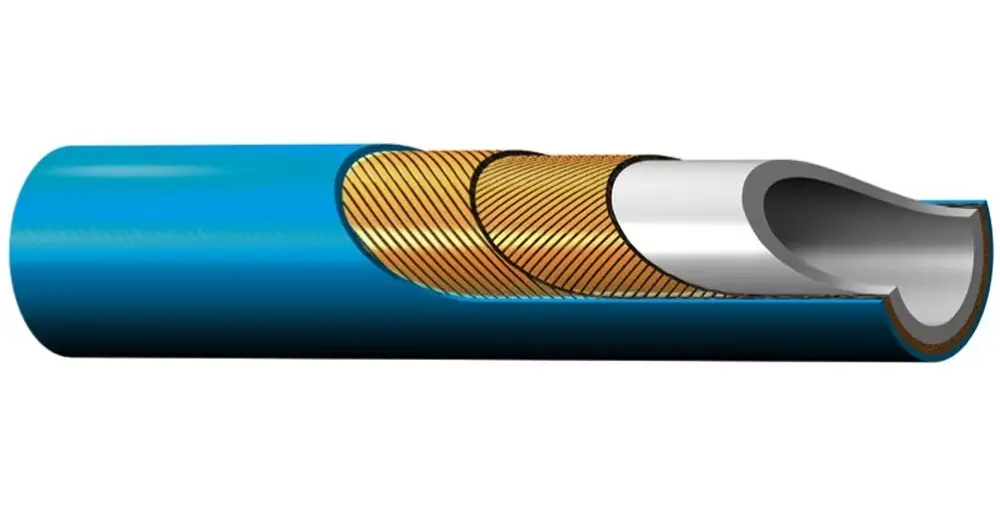

Product Image:
Technical Specifications:
| Maximum Operating Temperature: | 70°C, 158°F |
| Hose I.D. (inch): | Mar-16 |
| Cover Material: | Polyamide - Standard |
| Hose Cover Type: | Standard Cover |
| Hose I.D. (mm): | 4.8 |
| Brand: | Parker |
| Media: | Petroleum Hydraulic Fluids, Water |
| Specifications Met: | DIN 1829-2 |
| Compatible Fitting: | TX Series |
| Inside Diameter: | 3/16 inch, 4.8 mm |
| Application: | Industrial Cleaning, Marine Cleaning, Water Jet Cutting |
| Hose Reinforcement Material: | 2 Spirals of High Tensile Steel Wire |
| Outside Diameter: | 0.374 inch, 9.5 mm |
| Division: | Polymer Hose Division Europe |
| Industry: | General Industrial, Marine |
| Technology: | Fluid & Gas Handling |
| Product Type: | Hydraulic Hose, Transfer Hose, Water Blast Hose, Water Hose |
| Maximum Operating Pressure: | 110 MPa, 15950 psi, 1100 bar |
| Minimum Bend Radius: | 95 mm, 3.740 inch |
| Design Factor: | 2.5:1 |
| Maximum Operating Temperature: | 158 °F, 70 °C |
| Minimum Operating Temperature: | 14 °F, -10 °C |
| Materials of Construction: | Thermoplastic |
| Cover Material: | Polyamide (PA) |
| Hose Inner Tube Material: | Polyoxymethylene (POM) |
| Weight: | 0.13 kg/m, 0.09 lb/ft |
Parker Thermoplastic Hoses for Ultra High-Pressure Catalog_4462_UK--(English).pdf
