4. Part No: 1C9LX-16-03
Description: Metric female swivel heavy series with O-ring.
Product: Hose Fitting
UOM: Nos

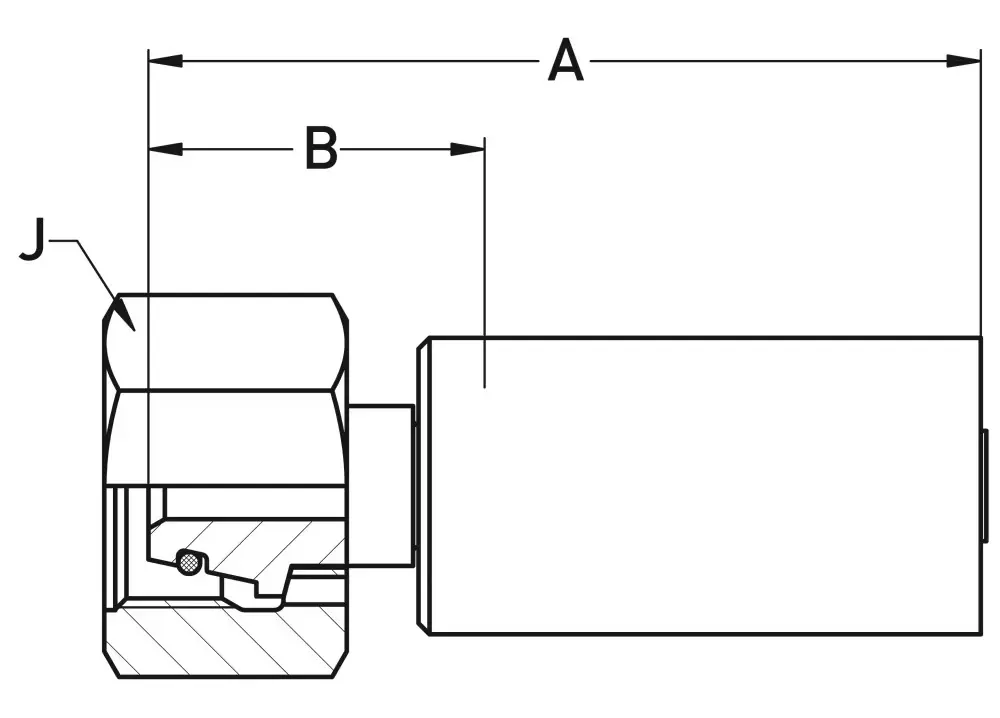

Product Image:
Technical Specifications:
| Hose I.D. (inch): | 3/16" |
| Shape: | Straight |
| Hose I.D.: | DN 5 |
| Hose I.D. (mm): | 4.8 mm |
| Thread Type: | Metric |
| Fitting Type: | C9 |
| Connection Thread Size: | M24x1.5 |
| Hose I.D. (size): | -3 |
| Length (mm): | 80 mm |
| Maximum Working Pressure (MPa): | 180.0 MPa |
| Materials of Construction: | High Strength Carbon Steel, Zinc-plated |
| Maximum Working Pressure (psi): | 26100 psi |
| Length (inch): | 3.1" |
| Product Style: | Metric Female Swivel Heavy Series with O-ring |
