37. Part No: E321G3810-2995-481865C2
Description:
G Series is a full range of direct and indirect acting solenoid valves, normally closed and normally open, from 1/2" to 2", offering many sealing materials and different flow rates.
Product: Valve
UOM: Nos

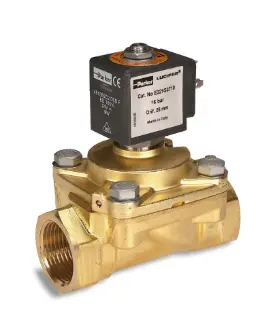

Product Image:
Technical Specifications:
Related Documents:
Parker General Catalogue--0112UK.pdf
Product: Valve
UOM: Nos
Product Image:
Technical Specifications:
| Seal Material: | NBR |
| Flow Coefficient 1: | 270 l/min |
| Specifications Met: | Manual Override - Closure Speed Control |
| Coil Specifications Met: | CE - VDE - EAC |
| Function: | Normally Closed |
| Power Supply Voltage: | 24V DC |
| Maximum Operating Pressure: | 16 bar AC/DC |
| Actuation Type: | Pilot Operated |
| Minimum Fluid Temperature: | -10 °C |
| Port Size: | 1 1/4" G |
| Electrical Connection: | 2 P + E plug according to EN 175301-803 type A |
| Valve Type: | 2/2 Way |
| Port Type: | Pipe Mounting |
| Media: | Water, Neutral Liquids |
| Seat Material: | Brass |
| Orifice Size: | 28 mm |
| Flow Coefficient 2: | 16,2 m3/hour |
| Minimum Operating Pressure: | 0,3 bar |
| Maximum Fluid Temperature: | 100 °C |
| Coil Power Consumption: | 9 W |
| Coil Temperature Range: | -40+50 °C |
| Insulation Class: | F 155 °C |
Related Documents:
Parker General Catalogue--0112UK.pdf
