36. Part No: P4CG4201D003
Description:
EPP4 Electro Pneumatic Pressure regulator designates a set of proportional pressure regulators with integrated electronic system. The range is wide, from 1/4" to 2" ports, 0 to 20 bar regulated pressure and includes ATEX certified versions.
Product: Valve
UOM: Nos

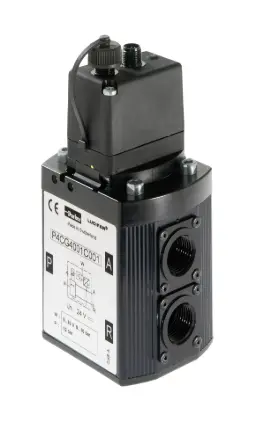

Product Image:
Technical Specifications:
Product: Valve
UOM: Nos
Product Image:
Technical Specifications:
| Electrical Connection: | M12 - 8 pin; male connector power supply/control signal |
| For Fluid Type: | Lubricated or non lubricated air, neutral gases |
| Control Signal: | 0 - 10 V |
| Port Size: | 1/2" BSP |
| Maximum Regulating Pressure: | 20 bar |
| Filter Efficiency Rating: | 50 micron |
| Minimum Ambient Temperature: | 0 °C |
| Maximum Ambient Temperature: | +50 °C |
| Hysteresis: | ≤ 100 mbar if P inlet ≤ 10 bar |
| Hysteresis: | ≤ 200 mbar if P inlet > 10 bar |
| Power Supply Voltage: | 24V DC ± 15% (Max. ripple 1V) |
| Power Consumption: | Max. 6 W with 24 V DC and constant changes of the control signal, < 2 W without change of control signal |
| Minimum Pressure Differential: | 0 bar |
| Maximum Pressure Differential: | 21 bar |
| Minimum Regulating Pressure: | 0,05 bar |
| Maximum Flow Rate: | 150 m3/hour |
| Operational Life: | > 50 Million changes of control signal steps |
| Protection Mode: | IP65 |
| Specifications Met: | EN 61000-6-1: 2001 | EN 61000-6-2: 2001 | EN 61000-6-3: 2001 | EN61000-6-4:2001 |
| Materials of Construction: | Silicon free |
| Vibration Resistance: | 30g (in all directions) |
| Mounting Position: | Indifferent (recommended position: upright; electronic part on top) |
