2. Part No: 2380N-04V00
Description: Parker High Pressure 2380N Hoses are developed for High and Ultra High-Pressure applications, combining excellent handling and long service life with superior safety standards. For working pressure up to 75 MPa.
Product: Hose
UOM: MTR

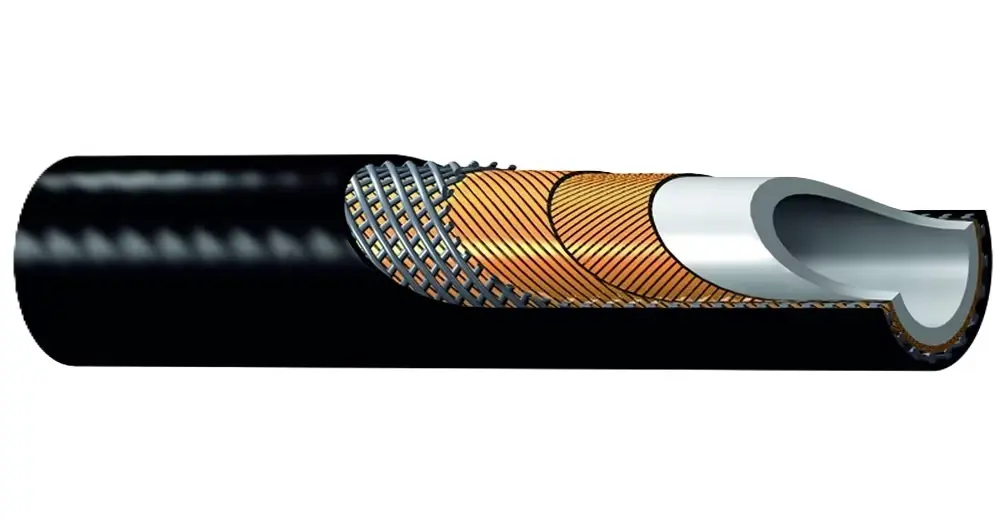

Product Image:
Technical Specifications:
| Weight (kg/m): | 0.27 |
| Color: | Black |
| Brand: | Parker |
| Media: | Petroleum Hydraulic Fluids |
| Specifications Met: | n/a |
| Compatible Fitting: | 8X Series |
| Inside Diameter: | 1/4 inch, 6.4 mm |
| Application: | Hydraulics |
| Hose Reinforcement Material: | 2 Spirals and 2 Open Spirals of High Tensile Steel Wire |
| Outside Diameter: | 0.528 inch, 13.4 mm |
| Division: | Polymer Hose Division Europe |
| Industry: | General Industrial, Marine |
| Technology: | Fluid & Gas Handling |
| Product Type: | Hydraulic Hose, Transfer Hose, Water Blast Hose |
| Maximum Operating Pressure: | 10150 psi, 70 MPa, 700 bar |
| Minimum Bend Radius: | 70 mm, 2.756 inch |
| Design Factor: | 4:1 |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Minimum Operating Temperature: | -40 °F |
| Materials of Construction: | Thermoplastic |
| Cover Material: | Polyurethane |
| Hose Inner Tube Material: | Polyamide (PA) |
| Weight: | 0.27 kg/m, 0.18 lb/ft |
| Maximum Working Pressure (MPa): | 70.0 |
Parker Thermoplastic Hoses for Ultra High-Pressure Catalog_4462_UK--(English).pdf
