15. Part No: 1YALX-6-03
Description: Crimped Thermoplastic UHP Hose Fittings, LX Fitting Series, High pressure tube nipple UNF – LH thread.
Product: Hose Fitting
UOM: Nos

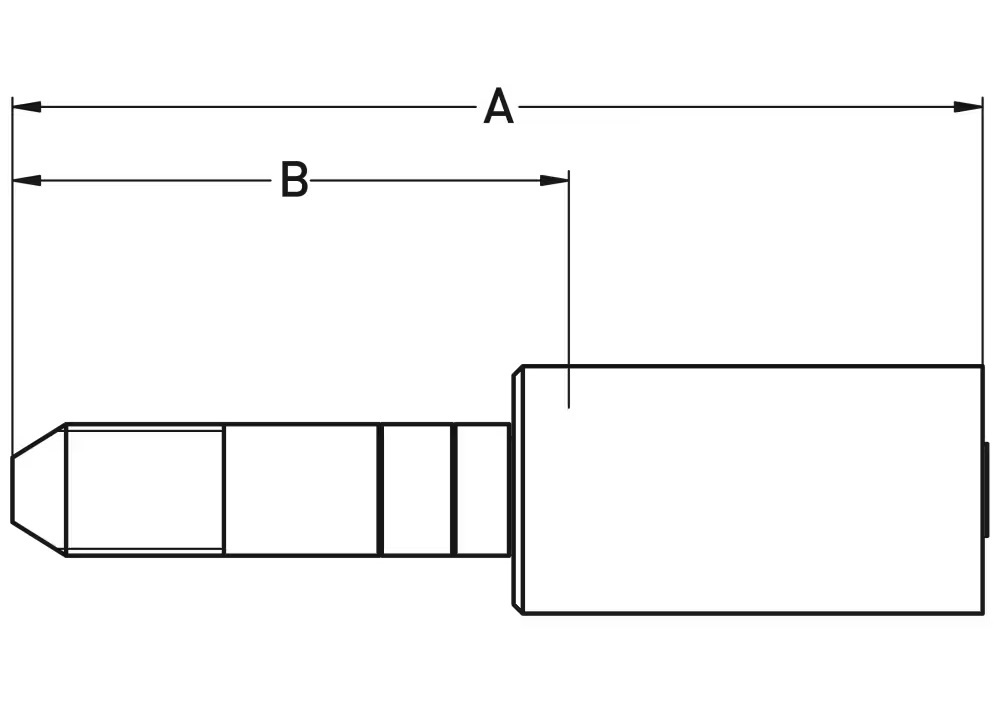

Product Image:
Technical Specifications:
| Hose I.D. (inch): | 3/16" |
| Product Style: | High Pressure Tube Nipple UNF – LH Thread |
| Connection Thread Size: | 9/16"-18 |
| Style: | High pressure tube nipple UNF – LH thread |
| Shape: | Straight |
| Hose I.D.: | DN 5 |
| Connection Type: | UNF-LH |
| Hose I.D. (mm): | 4.8 mm |
| Thread Type: | UNF - LH |
| Hose I.D. (size): | -3 |
| Length (mm): | 108 mm |
| Maximum Working Pressure (MPa): | 180.0 MPa |
| Material: | Special materials |
| Materials of Construction: | Special Materials |
| Maximum Working Pressure (psi): | 26100 psi |
| Fitting Type: | YA |
| Length (inch): | 4.3" |
