14. Part No: 1C9LX-8-025
Description: Crimped Thermoplastic UHP Hose Fittings, LX Fitting Series, Metric female swivel heavy series with O-ring.
Product: Hose Fitting
UOM: Nos

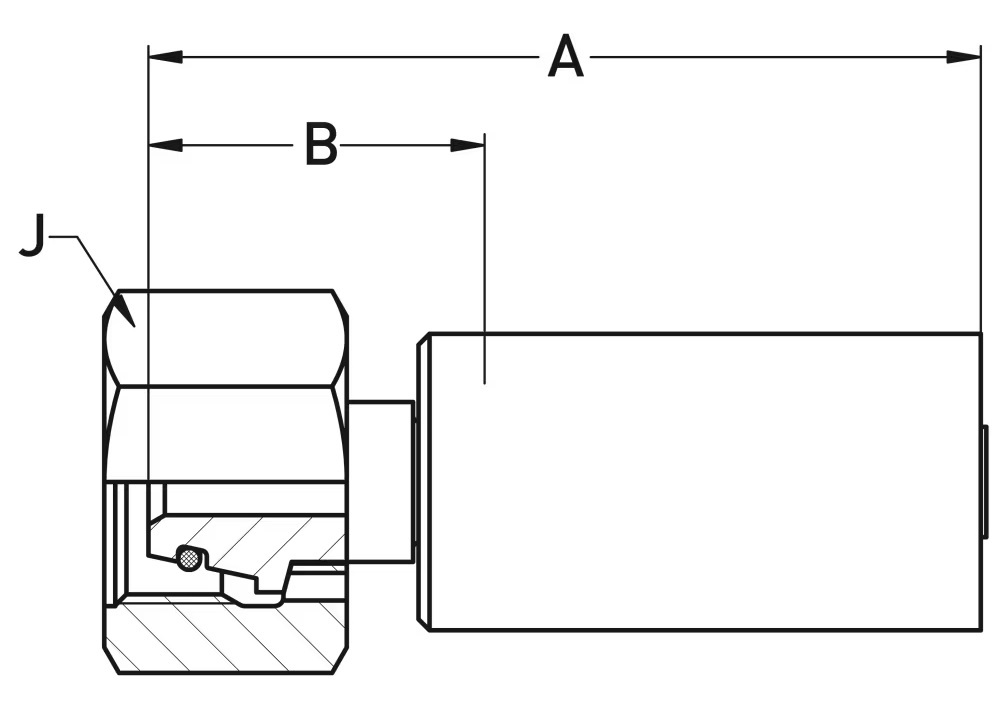

Product Image:
Technical Specifications:
| Hose I.D. (inch): | 5/32" |
| Form: | Straight |
| Hose I.D. (mm): | 4 mm |
| Thread Type: | Metric |
| Fitting type: | C9 |
| Snake I.D.: | DN 4 |
| Connection thread size: | M16x1.5 |
| Hose I.D. (size): | -25 |
| Length (mm): | 67 mm |
| Maximum operating pressure (Mpa): | 220.0 MPa |
| Construction materials: | High Strength Carbon Steel, Zinc-plated |
| Maximum Working Pressure (psi): | 31900 psi |
| Length (inch): | 2.6" |
| Product Style: | Metric Female Swivel Heavy Series with O-ring |
