1. Part No: 2440D-04V32
Description: Parker High Pressure 2440D Hoses are developed for High and Ultra High-Pressure applications, combining excellent handling and long service life with superior safety standards. For working pressure up to 220 MPa.
Product: Hose
UOM: MTR

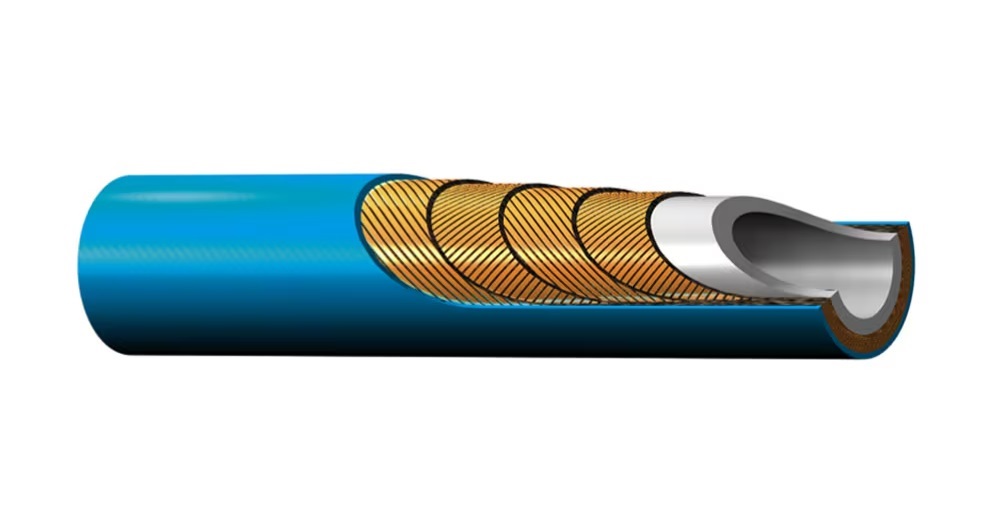

Product Image:
Technical Specifications:
| Cover: | Standard |
| Hose I.D. (mm): | 6.4 |
| Brand: | Parker |
| Media: | Petroleum Hydraulic Fluids, Water |
| Specifications Met: | DIN 1829-2 |
| Compatible Fitting: | LX Series |
| Inside Diameter: | 1/4 inch, 6.4 mm |
| Application: | Industrial Cleaning, Marine Cleaning, Water Jet Cutting |
| Hose Reinforcement Material: | 4 Spirals of Maximum Tensile Steel Wire |
| Outside Diameter: | 0.492 inch, 12.6 mm |
| Division: | Polymer Hose Division Europe |
| Industry: | General Industrial, Marine |
| Technology: | Fluid & Gas Handling |
| Product Type: | Hydraulic Hose, Transfer Hose, Water Blast Hose, Water Hose |
| Maximum Operating Pressure: | 23780 psi, 164 MPa, 1640 bar |
| Minimum Bend Radius: | 155 mm, 6.102 inch |
| Design Factor: | 2.5:1 |
| Maximum Operating Temperature: | 70 °C, 158 °F |
| Minimum Operating Temperature: | 14 °F, -10 °C |
| Materials of Construction: | Thermoplastic |
| Cover Material: | Polyamide (PA) |
| Hose Inner Tube Material: | Polyoxymethylene (POM) |
| Weight: | 0.33 kg/m, 0.22 lb/ft |
| Maximum Working Pressure (MPa): | 164 |
Parker Thermoplastic Hoses for Ultra High-Pressure Catalog_4462_UK--(English).pdf
